🔧 Product Description

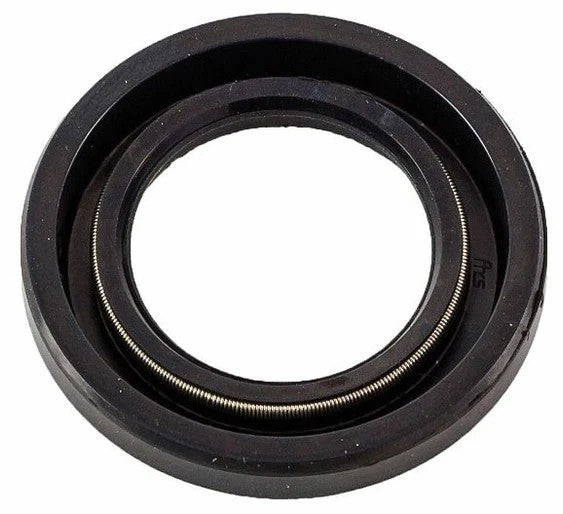

Genuine Yamaha 22mm Propeller Shaft Oil Seal - Part Number: 93101-22067

A genuine Yamaha S-type lower-unit shaft seal for selected 20HP to 60HP outboards.

The approximately 22mm x 36mm x 6mm seal retains gear lubricant around the propeller or driveshaft while preventing cooling water and external contamination from entering the gearcase.

⚙️ Key Features

  • Genuine Yamaha OEM rotary oil seal
  • Correct current Yamaha part number 93101-22067
  • Approximate dimensions: 22mm x 36mm x 6mm
  • Supersedes earlier seal 93101-22M00
  • Sierra, Recmar, Suzuki and Mercury cross-references available

🚤 Compatibility

Commonly used on

  • Yamaha mid-range lower-unit propeller or driveshaft assemblies
  • Yamaha, Suzuki and Mercury / Mariner gearcases using the equivalent seal dimensions

Typically suits

  • Engine models:
  • Yamaha 20HP outboards
  • Yamaha 25HP outboards
  • Yamaha 30HP outboards
  • Yamaha 40HP outboards
  • Yamaha 48HP and 50HP outboards
  • Yamaha 55HP and 60HP outboards
  • Yamaha F40 four-stroke
  • Yamaha F50 four-stroke
  • Yamaha F60 four-stroke
  • Yamaha 20C driveshaft applications
  • Yamaha 55AE lower units
  • Corresponding Suzuki and Mercury / Mariner gearcases using the listed cross-reference seals
  • HP Range: Approximately 20HP - 60HP
  • Engine Type: Yamaha two-stroke and four-stroke outboard
  • Seal Size: Approximately 22mm x 36mm x 6mm.

🔌 Function

The seal retains lower-unit lubricant and prevents water intrusion around the rotating shaft.

⚠️ Common Signs of Failure

  • Gear lubricant leaks from the shaft area
  • Gear oil becomes milky
  • Gearcase fails pressure or vacuum testing
  • Seal lip is cut or hardened
  • Shaft sealing surface is worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 93101-22067 → Supersedes 93101-22M00
  • 93101-22M00 earlier OEM shaft-seal reference

OEM / Related Numbers

  • 93101-22067
  • 93101-22067-00
  • 93101-22M00
  • Mercury Marine: 26-82233M
  • Mercury Marine: 26-83406M
  • Mercury Marine: 854017
  • Suzuki Marine: 09282-22004
  • Suzuki Marine: 09282-22007

Aftermarket / Verified Equivalents

  • Sierra: 18-0296
  • Recmar: REC93101-22067
  • Suzuki Marine: 09282-22004
  • Suzuki Marine: 09282-22007
  • Mercury / Mariner: 26-82233M
  • Mercury / Mariner: 26-83406M

📦 Condition

  • Genuine Yamaha part
  • Brand new
  • Supplied in original or equivalent packaging
